Shenzhen Heguang Lighting Co., Ltd. is well-known as one of the most reliable manufacturers and suppliers of swimming pool under water lights in China. If you're going to wholesale high quality swimming pool under water lights made in China, welcome to get free sample from our factory. We also accept customized orders.
Product Overview

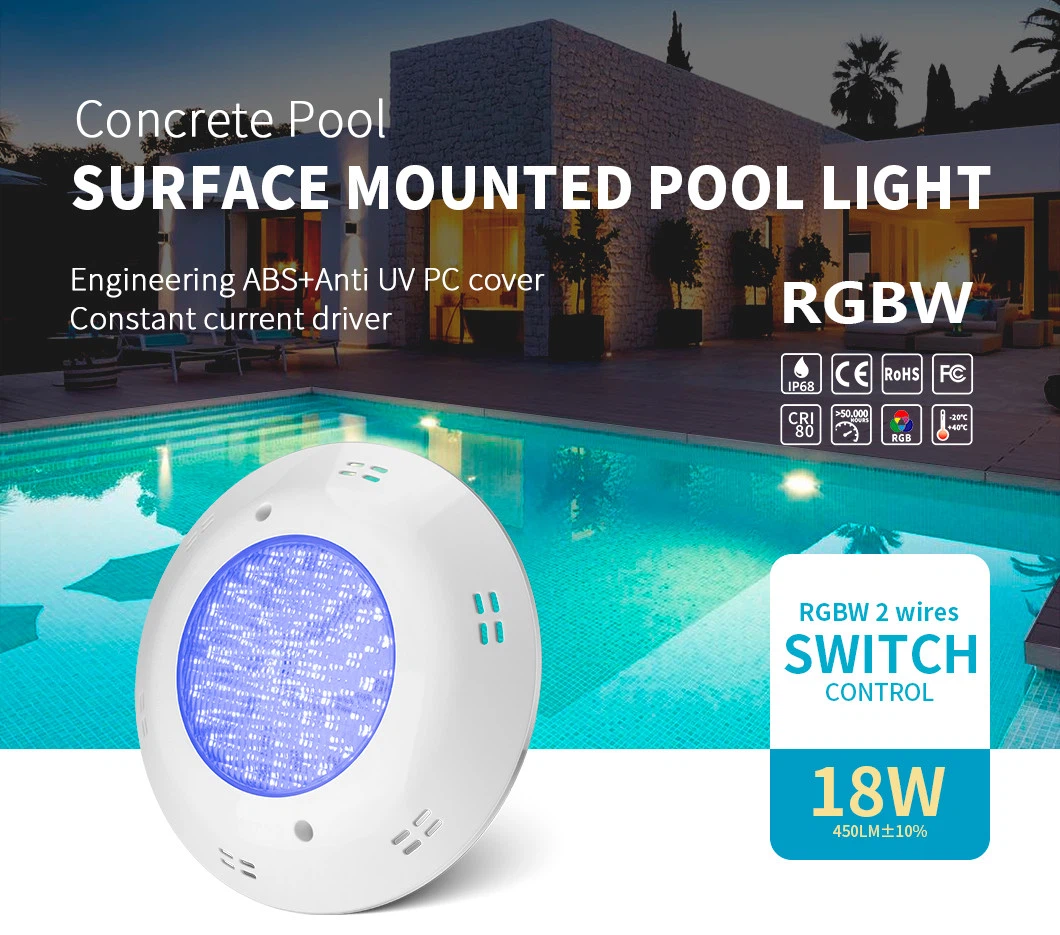

The HG-PL-18W-C1-RGBW-D2 is an RGBW pool light that is mounted to the surface of a concrete pool. The housing is made of designed ABS material and has a UV-resistant PC lens. With constant-current driving technology and the two-wire switch control method, the HG-PL-18W-C1-RGBW-D2 can produce full RGBW color via its two power cords. The sealing structure with an O-ring design ensures that no water leaks occur at the design stage. This makes our pool lights perfect for privately owned pools, hotel pools, and public water parks.
Key Features
1. Integral Sealing Design - No leakage whatsoever.
The integrated seal design utilizing O- rings provides a structurally waterproof fixture and eliminates the need for potting. The new design has no risk of leakage over long periods when operated submerged in water and will provide significantly longer life for the luminaire.
2. International Certifications for Quality Assurance
Our products have passed rigorous international quality and safety Standards and obtained numerous internationally recognized certifications (CE, RoHS, FCC). This means our products comply with major international standards and are dependable in most international markets.
3. High-Name International Brand LED Chips
Our LED chips used are manufactured by the world's top-quality brands (e.g., CREE, OSRAM) and provide many benefits:
1. Higher Lumens Per Watt: produce more light when using the same amount of electricity.
2. Low Luminance Decay: maintain their brightness over a longer period of time.
3. Pure colors. They have a uniform mixture of RGBW colors and are capable of producing pure white light.
4. RGBW 2-Wire Switch Control - which makes installation very easy
The 2-WIRE switch control technology allows for full switching between RGBW colors with only two power wires. This new technology will simplify installation and reduce costs associated with the lighting upgrade and retrofit project in existing pools.
5. Constant current drive provides constant light output.
The constant-current driving circuits incorporated in this design allow the units to produce a stable light output, thereby eliminating light decay as a result of current changes and extending the life of the products.
6. Engineering Grade ABS with UV-Resistant PC Cover
Engineering-grade ABS Housing: The construction provides a robust product with high tensile strength, excellent resistance to shock, and good retention of shape over time.
UV-resistant PC Cover: The light transmission rate of the cover is superior, and the cover material is designed to withstand the effects of yellowing and cracking caused by prolonged contact with the elements.
7. This product has been designed exclusively for use in concrete.
It has a surface-mount design; hence, no deep, large light housing is needed from the wall because the bracket attaches it directly to the pool wall. Because of this, you'll be able to use it for both building a pool and fixing an older one.
Swimming pool under water lights Specification:
|
Model |
HG-PL-18W-C1-RGBW-D2 |
||||
|
Electrical |
Voltage |
AC12V |
|||
|
Current |
1560ma |
||||
|
HZ |
50/60Hz |
||||
|
Wattage |
17W±10% |
||||
|
Optical |
LED chip |
SMD5050-RGBW LED chips |
|||
|
LED QTY |
84PCS |
||||
|
Wave length |
R: 620-630nm |
G: 515-525nm |
B: 460-470nm |
W: 3000K±10% |
|
|
Lumen |
130LM±10% |
300LM±10% |
80LM±10% |
450LM±10% |
|
Application Scenarios
Scenario | Recommended Effect
Private Pools | Daily usage should be characterized by 3,000K warm white lighting. The color mode can be used while entertaining friends.
Resort/Hotel Pools | The color changing through RGBW dynamic transitions will uplift the nighttime scenery of the hotel/resort pools.
Water Parks | The exciting environment should be amplified with the use of color jumping modes.
Landscape Pools | The night scenery becomes more interesting with a sense of depth when using a color cycling effect.
Product Benefits
Safe and Reliable
Low-voltage 12V AC electricity usage ensures the products will not be dangerous to use, as they have an IP68 rating, meaning they can be submerged in water without being damaged. Their sealed design also eliminates any chances of getting water into them as per the design.
Industry-Leading Energy Savings & Environmentally Friendly
LED lighting uses over 80% less energy compared to conventional halogen lighting, leading to significant long-term cost savings.
Simple Installation
Single-switch operation (2 wires) provides for easy wiring; the surface-mounted design removes the need to cut into the pool shell for previous installation of recessed fixtures. This means you can update your swimming pool with minimal disturbance, with no need to empty the water.
Reliability and Quality
International brand LED chips are used along with constant current drivers to provide a consistent output. Products have earned numerous international certifications.

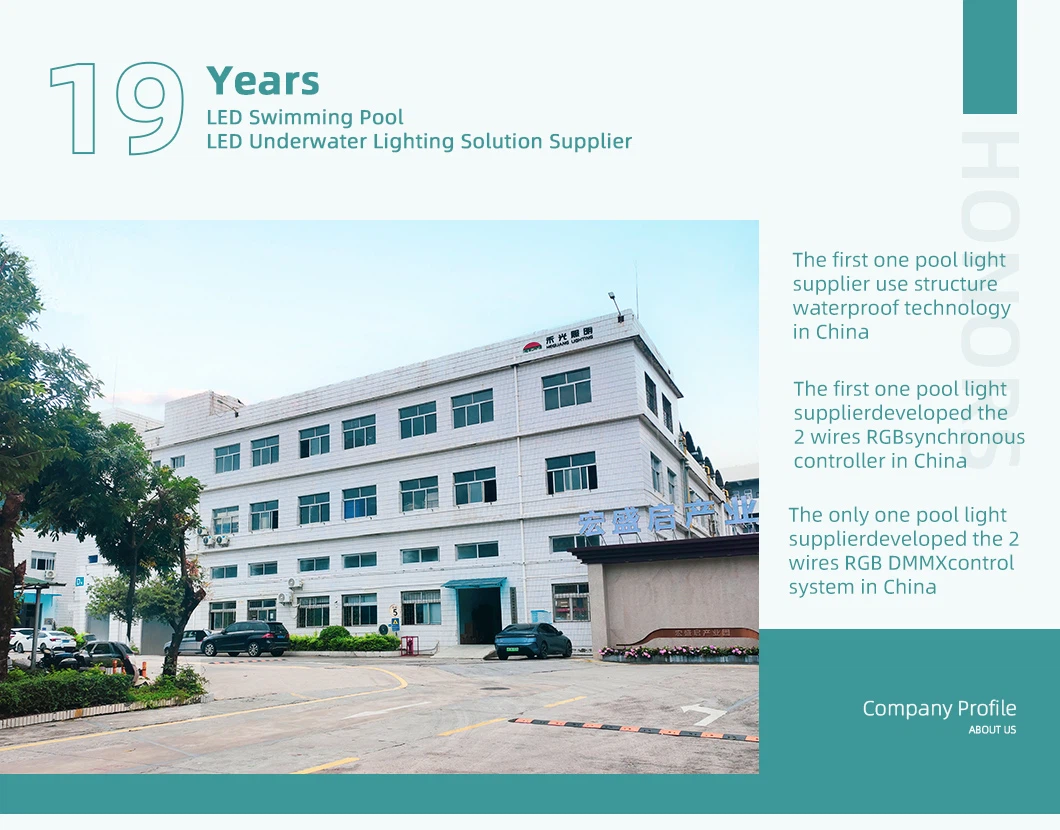

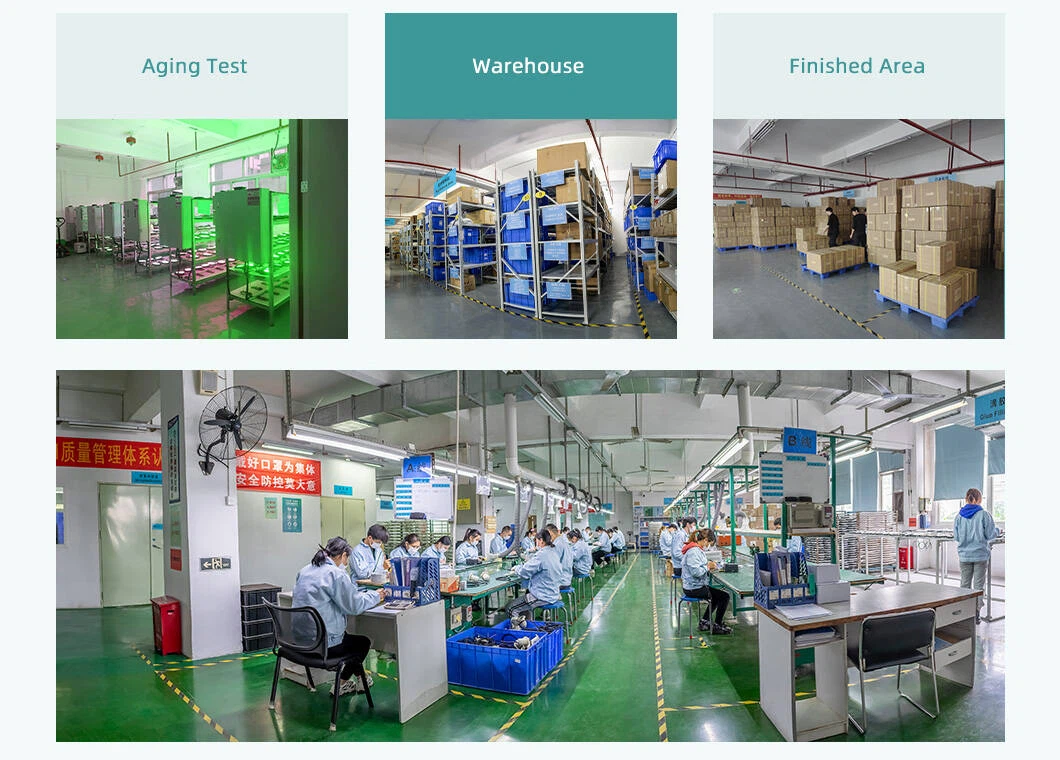

Manufacturing Strength
19 Years of Research & Development and Production Experience
With 19 years of extensive experience as a pool lighting manufacturer, our research & development and manufacturing focus on products that are exported to Europe, North America, and Southeast Asia.
Industry-Leading Achievements in China
First Chinese pool light producer to utilize structural waterproofing technology (as opposed to traditional potting methods).
First Chinese pool light producer to launch a 2-wire RGB synchronization controller.
To date, no other Chinese pool light manufacturer has developed capabilities for Rgb DMX control using 2 wires.
FAQ
Q: Would this light work for a vinyl liner pool?
R: This particular model is designed as a Surface Mount and is intended primarily for Concrete pools. There is a separate series specifically available for Vinyl Line pools.
Q: How do I change the colors using a 2-wire switch control?
A: The color changing and operation modes are changed by randomly turning the on/off switch on and off in a certain pattern of on/off sequence. Please view the manual that comes with this unit or contact our Technical Support staff for the correct procedure.
Q: Does it work in saltwater swimming pools?
A: It does. The product has corrosion-resistant properties, which make it usable in both freshwater and normal chlorinated swimming pools. However, we suggest you purchase the model with 316L stainless steel screws for saltwater pool use.
Q: Do I have to drain my pool when I install it?
A: No, you do not have to drain your entire pool. Since this product has a surface-mount design, all you need to do is lower your water level so it is below where you plan on installing the product.
Q: What are the benefits of constant current driving?
The constant current-driving method keeps the LED chip working at a constant current, and this avoids light degradation and damage caused by current fluctuations. Consequently, the brightness of the LED chip becomes much more stable, and the lifetime of the LED chip is extended.
Why Choose Us?

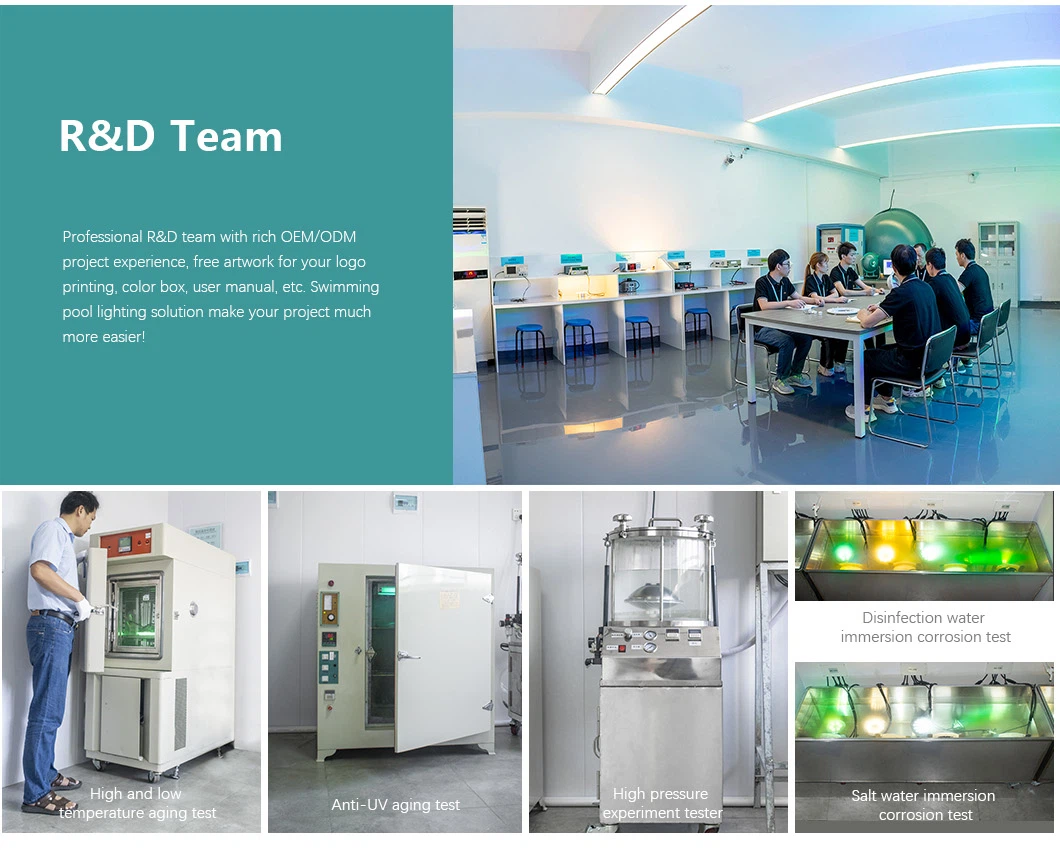

R&D Team of Excellence
Our research and development team has a deep understanding of OEM/ODM, providing clients with the options to customize logos, branded boxes, and manuals at no additional cost to the client. Over the last19 years, we have accumulated a significant amount of experience in researching R&D and manufacturing pool lights.
The Pool Lighting Company became the first in China to utilize structural waterproofing technology. This Pool Lighting Company became the first Pool Lighting Company to develop a 2-wire RGB synchronization controller. This Company is the only Pool Lighting Company that has developed a 2-wire RGB DMX control system. They use high-profile international brands of LED chips (CREE / OSRAM). The Company has developed sealed integrated structures so that leakage of water can be totally prevented. The Company products have obtained certification of CE, RoHS, FCC and IP68. The Annual Export Volume exceeds 100.000 sets and has been tested in Europe and America with excellent quality. The Company provides Professional OEM/ODM Services with Customization Support.
